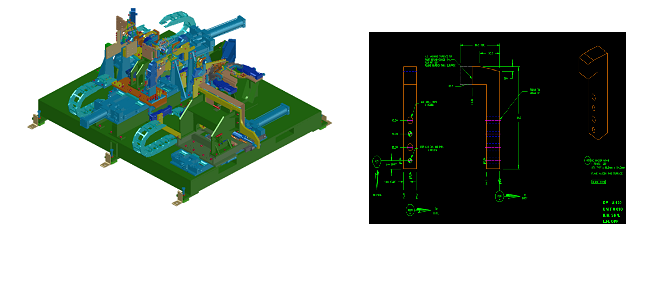

BIW Fixture Design & Drafting

BIW Fixture Design & Drafting

Automotive sector is one of the fastest developing industries in the modern World. We support developing 3D models for robotic, assembly and welding fixtures. We also support you in 2D drafting / detailing work as per BIW standards and Customer's specific requirements

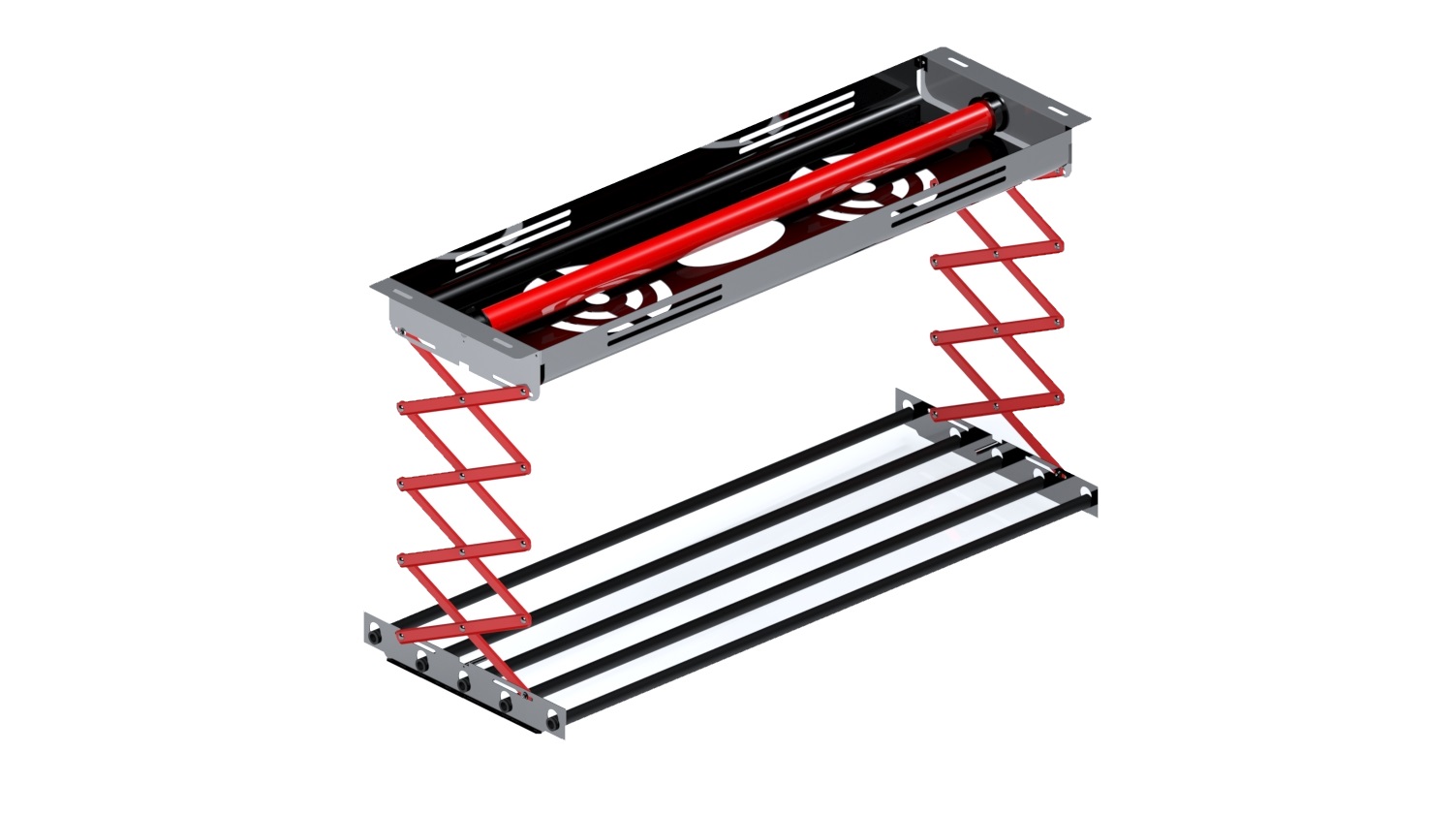

New product design

New product design

We design and develop new Products to make your dreams into real products.The first step of the process is to understand the requirements and certainly we will come out with a better product which could also be feasible to manufacture easily.

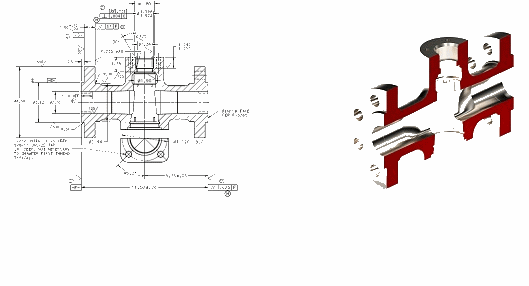

2D Drafting & 3D Modeling

2D Drafting & 3D Modeling

We make 3D part modeling and 2D Drawings, including Sub-Assemblies and Assembly with BOM.The way we create 3D Models and Drawings will be convenient for 'configuration management' to deal with future revisions and modifications.

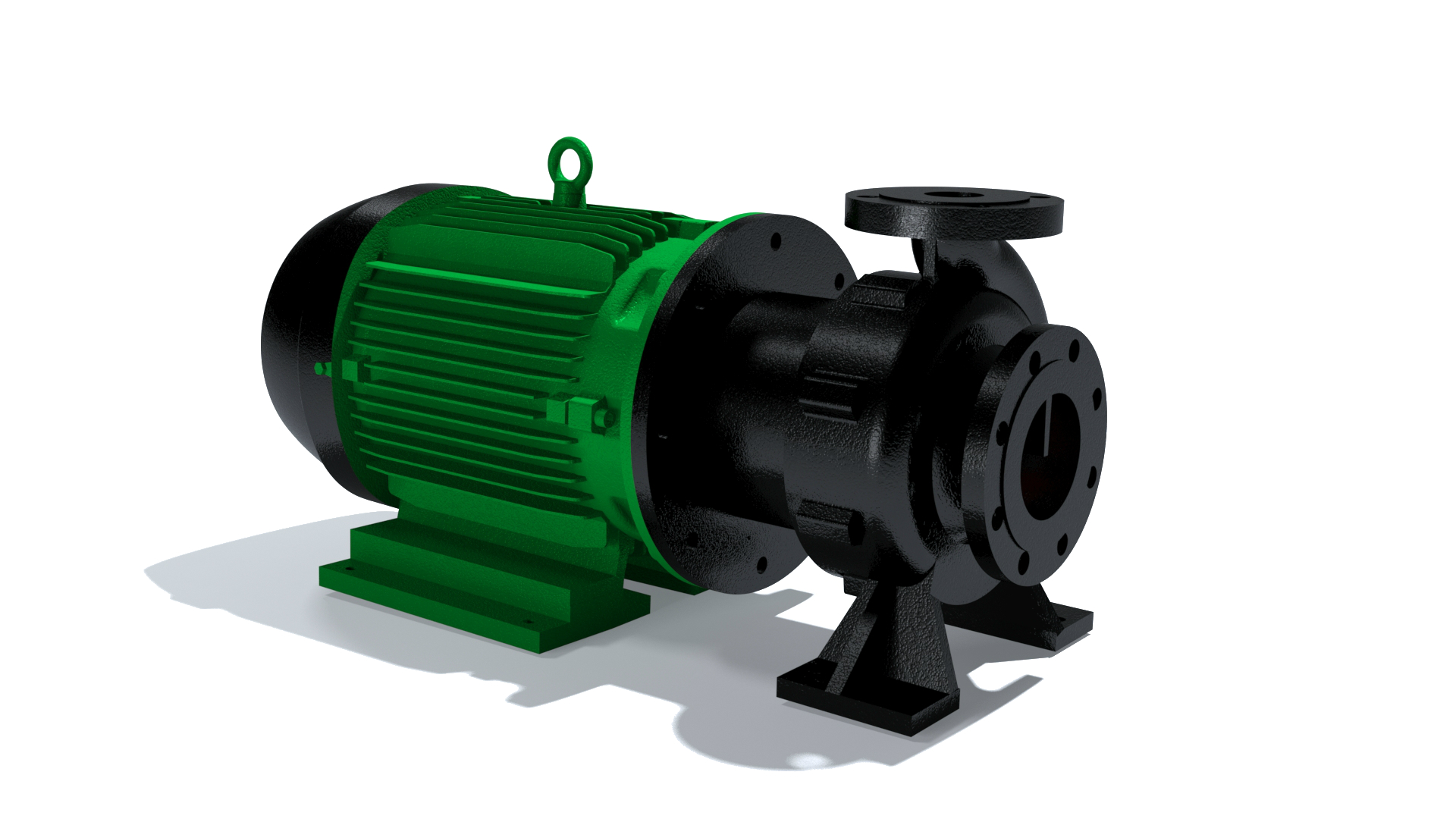

Reverse Engineering

Reverse Engineering

We offer you Reverse Engineering solution in a short span of time with perfectly accurate, with reference to the original product. We also make modifications if necessary to optimize the design.

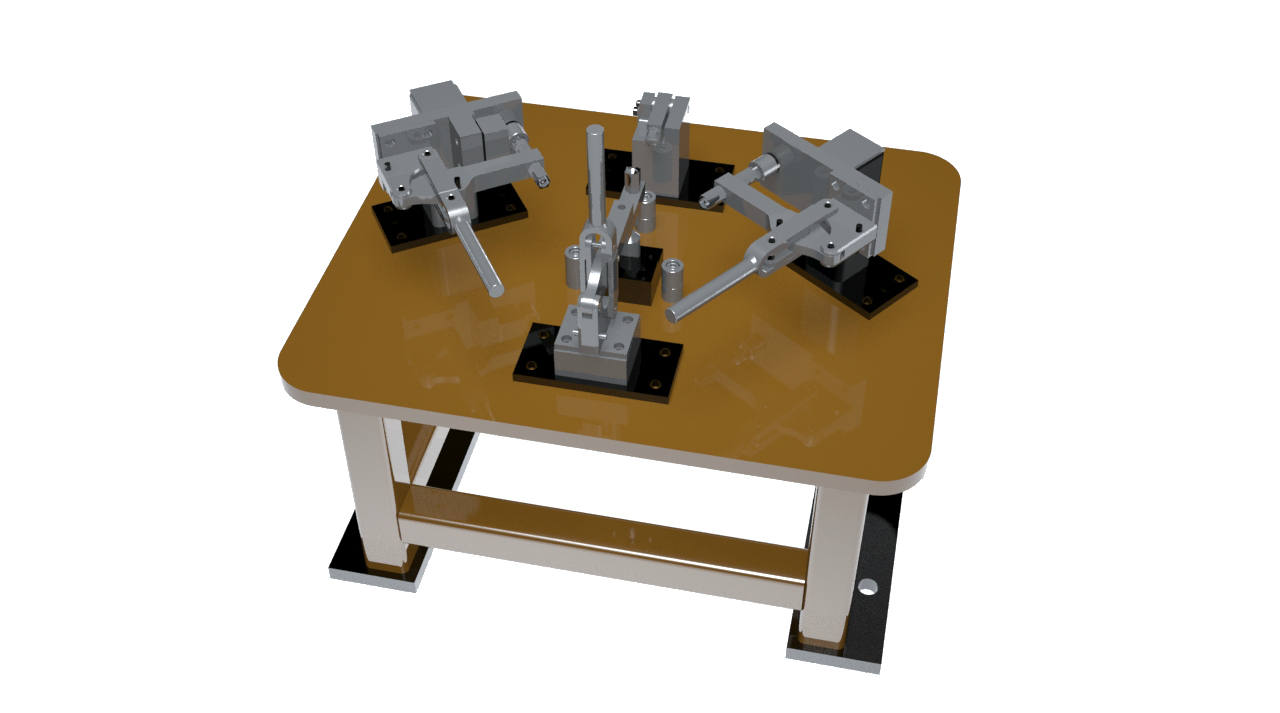

Re-Mastering

Re-Mastering

We help on migrating to your preferred CAD software by Re-building your old 3D software designs to the new CAD software without affecting the quality and accuracy of the Design.

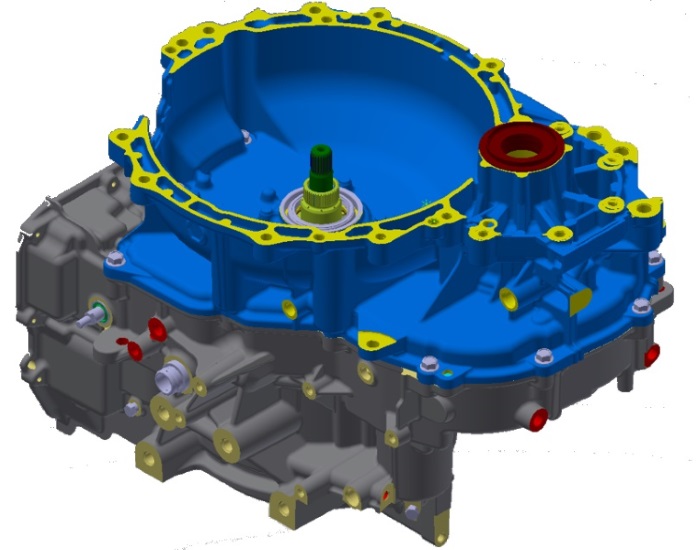

CAD conversion

CAD conversion

We offer CAD conversions from one CAD software to another, we make IGES / STEP & other CAD formats conversions, 2D to 3D conversions. Paper drawings are generally very bulky to carry. If you have large volumes of such paper drawings, we can convert them to CAD formats

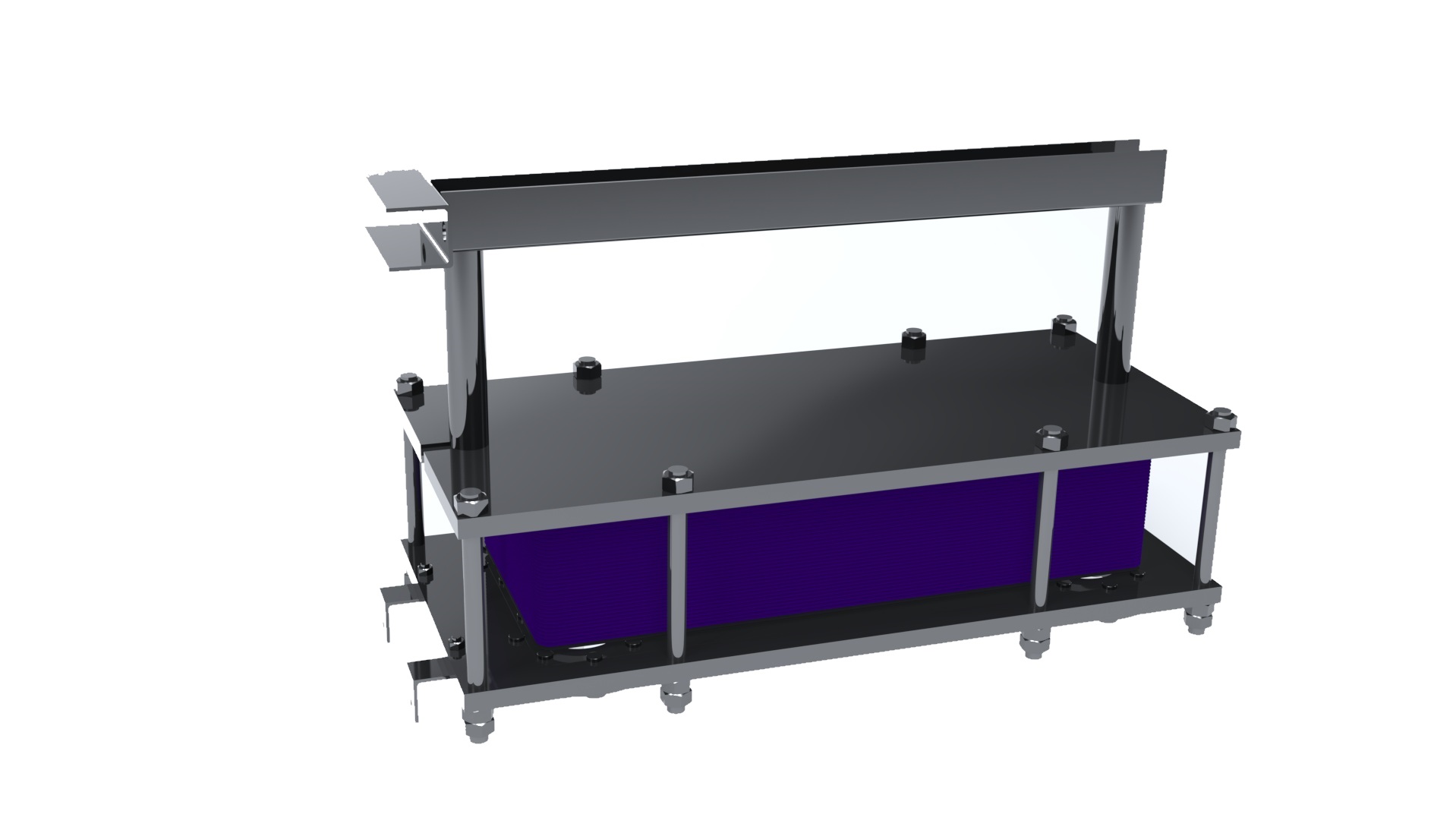

Conceptual Design

Conceptual Design

Innovative ideas brings new concepts and we are here to make the sculpture of your new idea. And, while designing the concept, we consider the issues, concerns and goals to come out with the best and effective concepts.

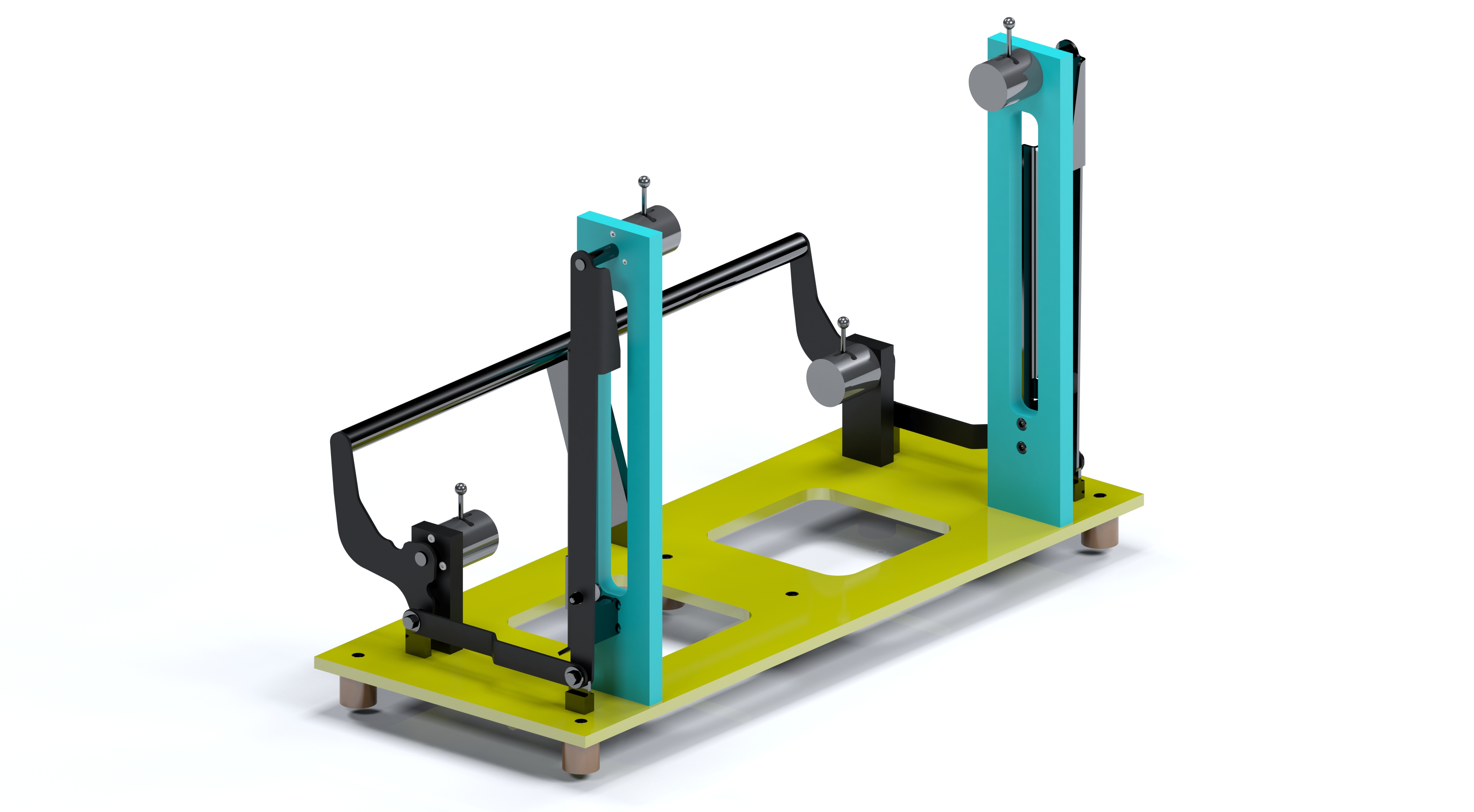

Jigs & fixtures

Jigs & fixtures

Our industrial experts help you to design cost effective Fixtures which can deliver maximum productivity and best quality products. We design Assembly, Machining, Welding, Inspection and special purpose Fixtures to suit your needs.

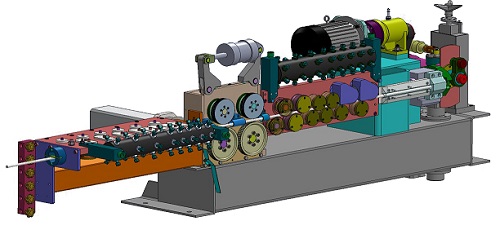

SPM design

SPM design

Special purpose machines are always special because it does great work while all other general machineries fail to give what we expect! Such machine designs are really challenging for designers and its our pleasure to come out with some good practical design solutions to build one.
